Virtua Fighter's 32X incarnation is receiving an unusually deep technical revival. Fan modder SEGA MODEL KING, also known as WangDrum, is developing a PC-based project that re-renders the 1994 32X port's 3D content in high definition and raises its animation output to 60 frames per second. Rather than applying a straightforward image-scale effect to the old game, the work tackles a core limitation in how the original version positioned and drew its polygonal fighters.
The result places renewed attention on a release that has long occupied a peculiar place in Sega history. The 32X was short-lived, expensive, difficult to program for, and frequently remembered as an awkward stopgap between the Mega Drive and Saturn generations. Yet Virtua Fighter demonstrated what Sega's add-on could do when its specific strengths were carefully exploited. Its home conversion was clearly reduced from the Model 1 arcade game, but it delivered quick fights, responsive action, smooth movement, cartridge-like loading, and an ambitious approximation of the sound and music associated with the Saturn edition.
That technical achievement is at the center of WangDrum's new work. The project does not attempt to pretend that the original 32X game was identical to its arcade counterpart. Instead, it highlights the qualities of the conversion itself, retaining its distinct models and presentation while allowing the geometry to be displayed with far more clarity than a 320x224 output could provide.
Virtua Fighter and the early 3D fighting game shift
When Virtua Fighter arrived in arcades in 1993, fighting games were already one of the industry's largest competitive spaces. Street Fighter, Mortal Kombat, and Fatal Fury had made one-on-one contests a fixture of both arcades and home consoles. Sega's game did not simply try to compete with those established series on their own two-dimensional terms. Powered by Model 1 technology, it used high-speed polygon rendering to produce a radically different look and feel.
For useful background on this topic, read Why The Curse of the Black Pearl Missed Out on a True Game Tie-In.
The characters were angular by modern standards, but their movement and spatial relationship were unlike the sprite-based rivals dominating the era. Players could circle opponents, consider range in a more visibly three-dimensional arena, and see martial-arts-inspired animation represented by solid polygonal bodies rather than hand-drawn frames. Virtua Fighter did not erase the popularity of its 2D contemporaries, but it proved that a 3D fighting game could be both readable and compelling.
Its importance has only become clearer with time. The game is broadly regarded as the first 3D fighter, and its influence can be seen in the road later traveled by series including Tekken and Soulcalibur. That legacy also made its console conversion problem especially difficult. A conventional 16-bit machine could deliver strong versions of many 2D fighting games, but reproducing the Model 1 arcade experience called for a very different class of hardware.
A remarkable conversion for difficult hardware
Virtua Fighter finally reached Sega hardware in the home market during late 1994 through two separate routes: Sega Saturn and 32X. The Saturn had the more capable foundation for a comparatively close reproduction, even if it was not an arcade-perfect version. By the time the system was being localized more broadly, however, the rapid pace of 3D development was already apparent, with PlayStation's Battle Arena Toshinden arriving in the United States in early 1995.
The 32X version had even more to prove. Sega's expansion sat atop the Mega Drive and paired additional processing hardware with an older platform architecture. Development was notoriously complicated, and the system's library rarely established a clear identity before Sega's own focus moved toward Saturn. Virtua Fighter therefore remains one of the add-on's most intriguing demonstrations: a game trying to reproduce a landmark polygonal arcade fighter on hardware that had to work around substantial constraints.
The port made compromises, as any such conversion had to. But it also made clever use of the hardware arrangement. Its 2D components were handled by the Mega Drive side of the setup, while the 32X's processors managed the demanding 3D work. The end product moved at a brisk pace and offered an experience that felt startlingly advanced for a cartridge-based Mega Drive expansion. For retro enthusiasts, it has become a reminder that the 32X was not inherently incapable; it was a machine whose potential was rarely given enough time or software support to become widely visible.
Why simple upscaling was not enough
The new project's most significant work happens beneath the image. Simply taking a 320x224 game picture and enlarging it would make the image bigger, but it would not improve the precision of the models' movement. The original 32X Virtua Fighter code locks final vertex positions to a 320x224 pixel grid. In practical terms, the polygon points that define characters and scenes remain tied to the low-resolution coordinate space even if the finished picture is sent to a larger display.
WangDrum's approach sidesteps that bottleneck by intercepting information earlier in the game's rendering process. Camera-space floating-point vertices, matrices, bones, and camera data are captured during the SH-2 interpreter's vertex and part transformation stage. That information is then used to reconstruct the coordinate space before the game's geometry, extracted from the ROM, is drawn again through a custom renderer operating in floating-point space.
This means the project is not merely stretching the 32X's original final framebuffer. The 3D geometry is being rendered without the old pixel grid dictating its smallest possible movement. The Mega Drive continues to handle the game's 2D elements, while the custom renderer takes responsibility for the polygonal portion. It is a hybrid arrangement that closely reflects the original division of labor while adapting it for a modern PC environment.

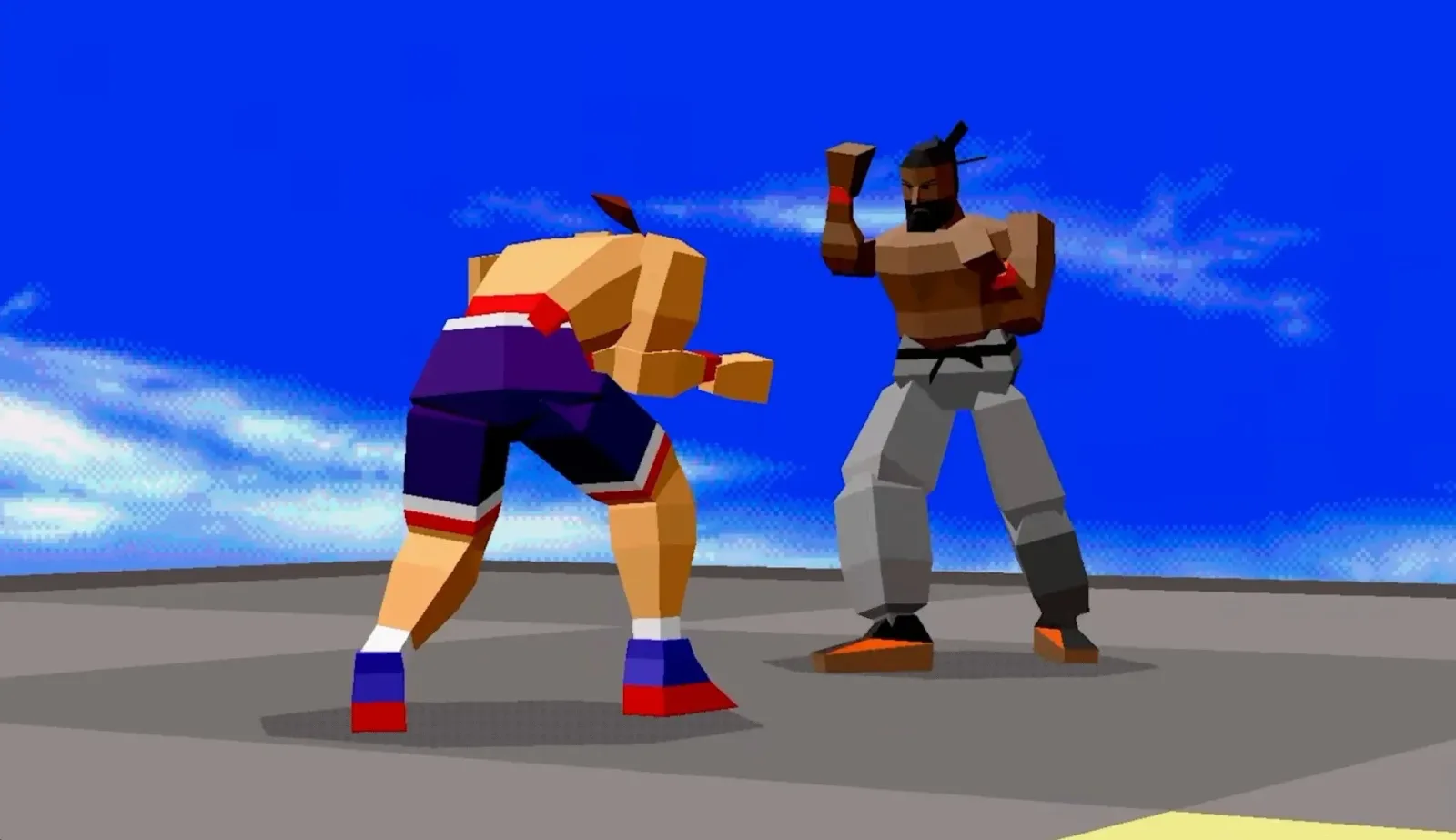

For viewers, the immediate benefit is a crisp HD presentation that makes the underlying construction of the 32X models much easier to appreciate. The port's fighters still look like products of the early polygon era, as they should, but their silhouettes, joints, clothing, and animation are no longer obscured by the limitations of a low-resolution signal.
60FPS changes the feel of the original
WangDrum has also added interpolation code intended to display the action at 60FPS instead of Virtua Fighter's original 30FPS. This is likely to be the project's most divisive enhancement among purists. Frame interpolation can make movement appear markedly smoother, especially in a fighting game built around kicks, throws, evasions, and quick shifts in stance. At the same time, the original cadence is part of how players remember the game's timing and visual character.
That tension is common in preservation and enhancement projects. Higher frame rates, sharper output, and reduced display artifacts can expose details that were always present in an old release but were difficult to see on period hardware. They can also alter the texture of a game enough that some players prefer the original presentation. In this case, the HD treatment has a strong historical value even for fans who favor 30FPS play, because it offers a better view of the artistry and technical choices embedded in the 32X conversion.
One especially revealing discovery concerns the characters' faces. During normal gameplay, the 32X version uses simplified facial features, a sensible concession when the hardware needs to render two fighters and an active scene. In victory poses, when the system can devote its resources to one character, those facial details are restored more fully. The higher-resolution rendering makes this switch much easier to spot, exposing a practical optimization that many players may never have noticed on original display equipment.
A spotlight on one of Virtua Fighter's overlooked versions
The project has already prompted enthusiasm from fans interested in both Virtua Fighter and Sega's more unusual hardware. Requests have included the possibility of applying a similar treatment to other 32X games, notably Star Wars Arcade and Virtua Racing Deluxe. Those suggestions underline how much curiosity still surrounds games made for the add-on, particularly titles whose visual ambitions exceeded what their original displays could comfortably reveal.
For now, WangDrum's attention remains on Virtua Fighter. That focus makes sense. The series is one of Sega's foundational arcade properties, and the 32X version is an important artifact from a period when console makers were racing to bring polygonal arcade experiences into living rooms. It was not the definitive way to play Virtua Fighter, even in its own day, but it was an inventive and surprisingly capable solution to a formidable technical problem.
The HD PC project gives that solution a new context. It preserves the 32X port's identity instead of replacing it with a modernized interpretation, while using reconstructed rendering data to free its polygon work from the display restrictions imposed by 1994 hardware. Whether players ultimately prefer the smoother 60FPS look or the original 30FPS cadence, the effort is a compelling demonstration of how reverse engineering can illuminate the craft inside a frequently underestimated retro release.
